AfricaHEINTZMANN BASIC BARRIER 1.33 BW - HLK
Reference: HBB 1.33 BW-HLK
Baseplate posts for engineering structures
- Description
- Technical data
- Product view
Description
The product HBB 1.33 BW - HLK is a vehicle restraint system for bridges with a limited working width.
Heintzmann Basic Barrier 1.33 BW - HLK consists of a C125 post placed on baseplate.
It has been developed with maximum optimization of weight and performance.
It offers an optimal performance: containment level H1-W2-A
HBB is a complete family of N2 level systems allowing to vary the working width from W2 to W5 by simply modifying the post spacing of the posts: see the other products of the HBB range.
Technical data
SPECIFICATIONS:
Type of post: C125 on base plate in S235 JR steel
Post spacing: 1,33m
Weight per lm: 19.6 kg
Beam profile: profile AF-HLK in S355 JR steel
NF058 connection certificates available on the following products: HBB 1.33 Plus-HLK
Tested length : 60 m in level H1
CE mark N°: 2251-CPR-0205-fr1

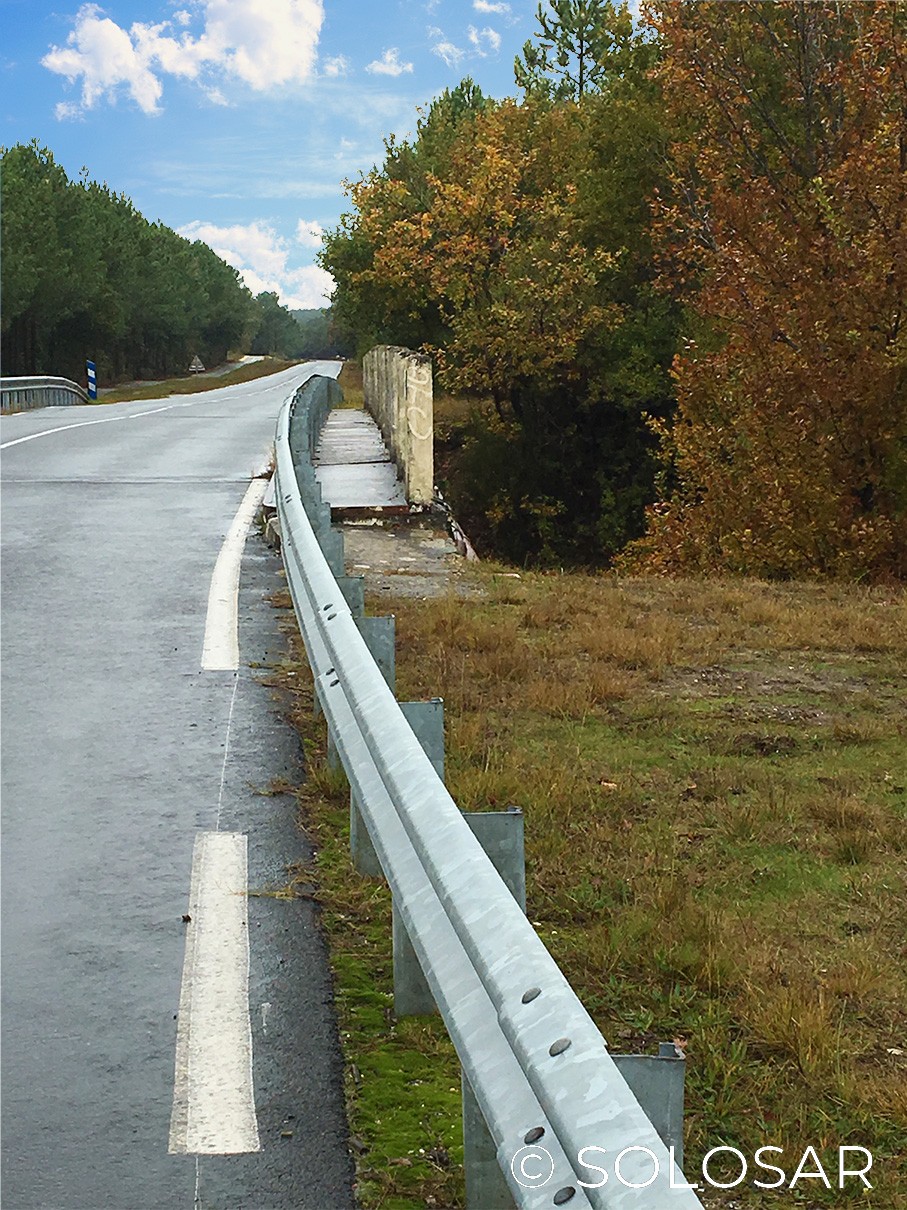

Product view
